DONGS CNC

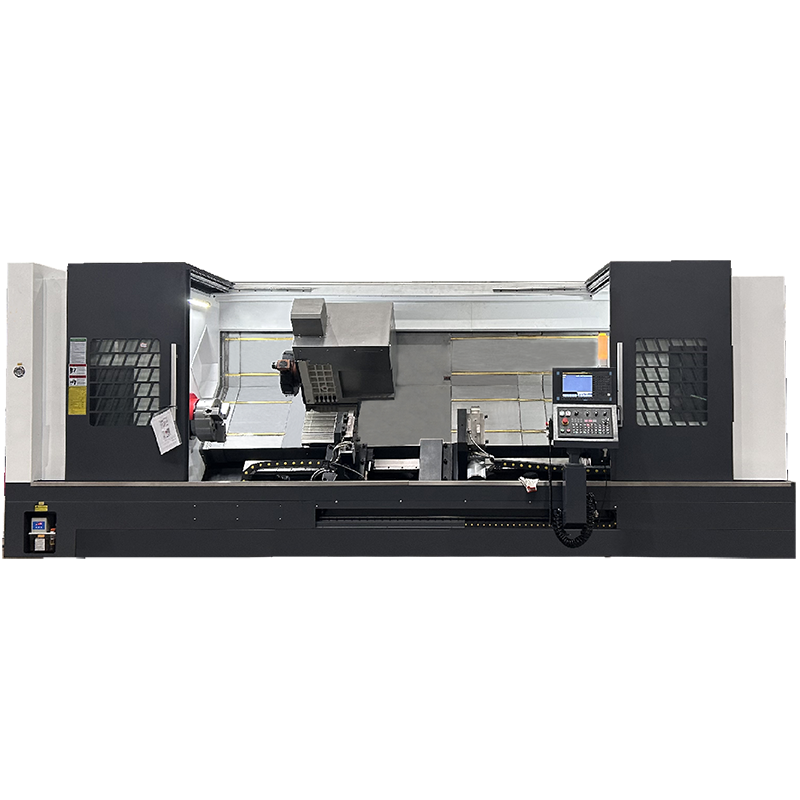

TCK52DY
Category:
High precision ball screw
High precision Roller linear guide
12-station powered turret
Magnetic ring encoder
Hydraulic programming tailstock
A2-6/A2-8 heavy duty spindle
Tel：
Download：
| CAPACITY | Unit | TCK52DY |
| Distance between centers | mm | 650/850 |
| Chuck size | inck | 8/10 |
| Max. swing over bed | mm | 670 |
| Max. swing over cross slide | mm | 400 |
| Linear guide rail width | mm | 45/45 |
| TRAVELS | ||
| X-Axis Rapid Traverse | m/min | 24 |
| Z-Axis Rapid Traverse | m/min | 24 |
| X axis travel | mm | 260 |
| Z axis travel | mm | 650/850/1270 |
| Y axis travel | mm | ±45 |
| MAIN SPINDLE | ||
| Max. Spindle Speed | rpm | 4200/3500 |
| Max. Spindle Power | kw | 11 |
| Spindle nose | - | A2-6/A2-8 |
| bar capacity | mm | 52/65/75 |
| TURRET | ||
| No. of tool station | - | 12 |
| Turret Type | - | 12 Station live tooling(BMT55) |
| Rotary Tool | r/min | 5000 |
| tailstock | ||
| quill diameter | mm | 80 |
| quill travel | mm | 80 |
| tailstock Travel | mm | 490/740/990 |
| tailstock taper | - | MT5 |
| DIMENSIONS | ||
| Packing size | m | 4 |
| Width | m | 2 |
| Height | m | 2.5 |
| NET Weight | kg | 4800 |
