High Precision Heavy duty CNC Lathe Machine TCK1000DY Slant bed turning machine
Category:
Tel：
Download：

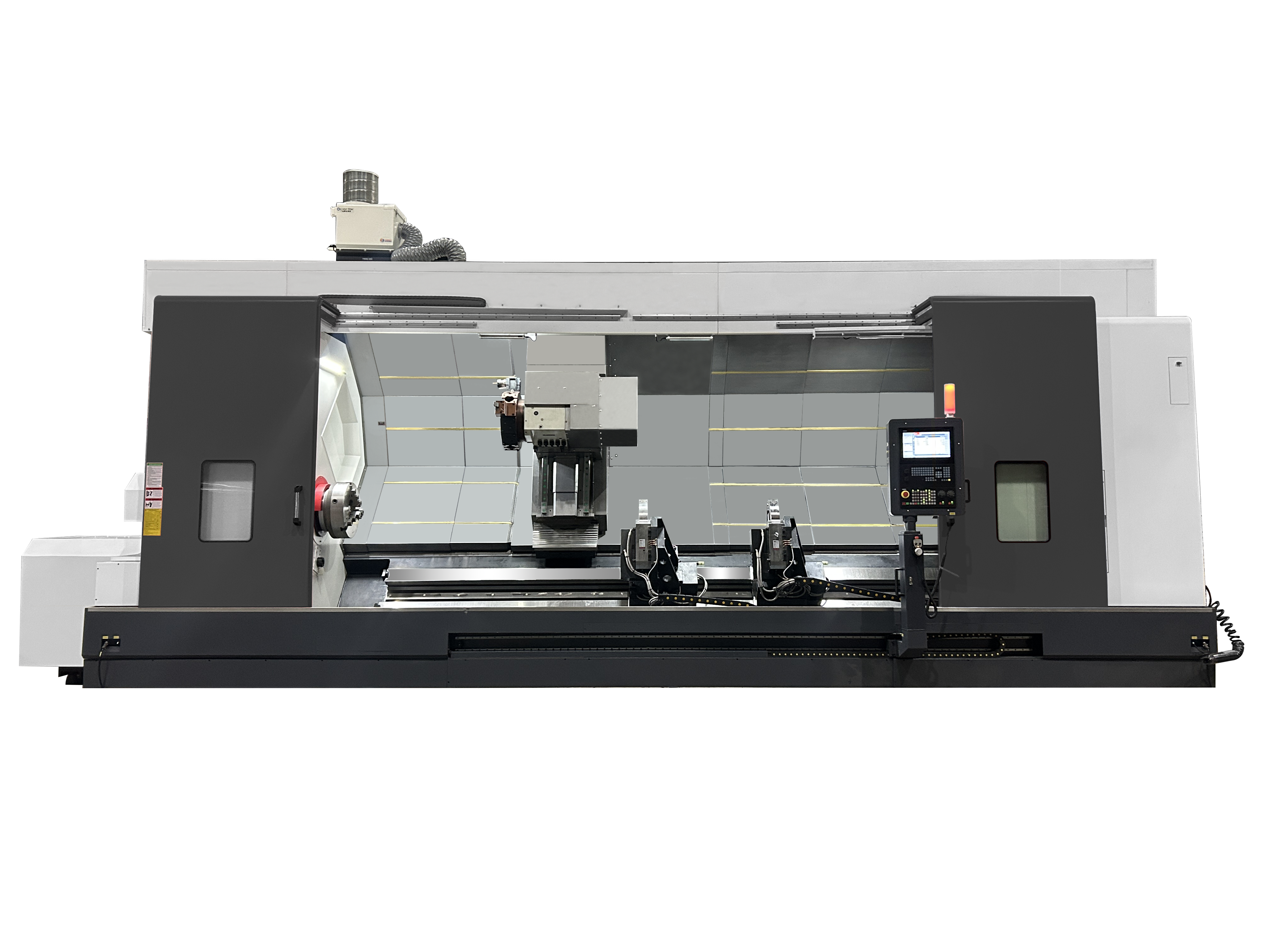

High Precision Slant Bed CNC Lathe TCK1000DY
The TCK1000DY features a slant-bed design that offers several advantages over traditional flat-bed lathes. The design allows for better chip evacuation, reducing the chance of tool interference and improving overall machining efficiency. The slant bed also increases the rigidity of the machine and ensures stability during high-speed operation.
The TCK1000DY is equipped with a powerful spindle with selectable through-hole diameters: 132/181mm/220mm/320mm/375mm for high-torque, X-axis/Z-axis/Y-axis co-ordinated movements.
| Description | Unit | TCK1000 |
| Swing over bed | mm | φ 1030 |
| Swing over saddle | mm | φ 1000 |
| Chuck size | inch | 18/21/24/32 |
| X-axis | mm | 500 |
| Z-axis | mm | 1000/1500/2000/3000/4000/5000/6000 |
| Y-axis | mm | ±100 |
| X-axis Rapid traverse rate | mm | 16 |
| Y-axis Rapid traverse rate | mm | 10 |
| Z-axis Rapid traverse rate | mm | 16 |
| Main spindle motor power | kw | 55(75) |
| No. of tool stations | ea | 12 |
| OD tool size | mm | 32x32 |
| Max. boring bar size | mm | 50 |
| Max. rotary tool speed | r/min | BMT85(1500) |
| Through hole of main spindle | mm | φ132/φ181/φ220/φ320/φ375 |
| Tail stock travel | mm | 1100/1600/2100/3100/4100/5100/6100 |
| sleeve diameter | mm | 180 |
| Travel of sleeve | mm | 200 |
| sleeve bore taper | mm | MT6 |
