The TCK52 series slant bed CNC lathe

The TCK52 series slant bed CNC lathe is available in four models: TCK52, TCK52D, TCK52DY, and TCK52DYS. It features an integral cast bed, automatic lubrication system, cooling system, and fully enclosed protective cover. The 30° low-centre-of-gravity slant bed structure is equipped with 45mm roller linear guides. The bed structure undergoes finite element stress analysis (FEM) to ensure structural integrity, with reinforced ribs designed to prevent twisting and deformation. The thickened, widened, and heavy-duty structure effectively guarantees the bed's rigidity and stability. The tailstock is available in hydraulic and servo-programmable versions. Hydraulic tailstock: The tailstock moves as a whole driven by a hydraulic cylinder, with all movements controlled by M codes. The tailstock's main structure is designed for heavy-duty applications, ensuring stable clamping force. The speed and pressure of the hydraulic cylinder can be adjusted arbitrarily to suit different working conditions; Servo-programmable tailstock: The entire tailstock moves driven by a servo motor, converting the rotational motion of the lead screw and nut into linear motion of the tailstock, thereby precisely controlling the position of the tailstock to meet high-precision machining requirements.

Below is a detailed introduction:

1.TCK52

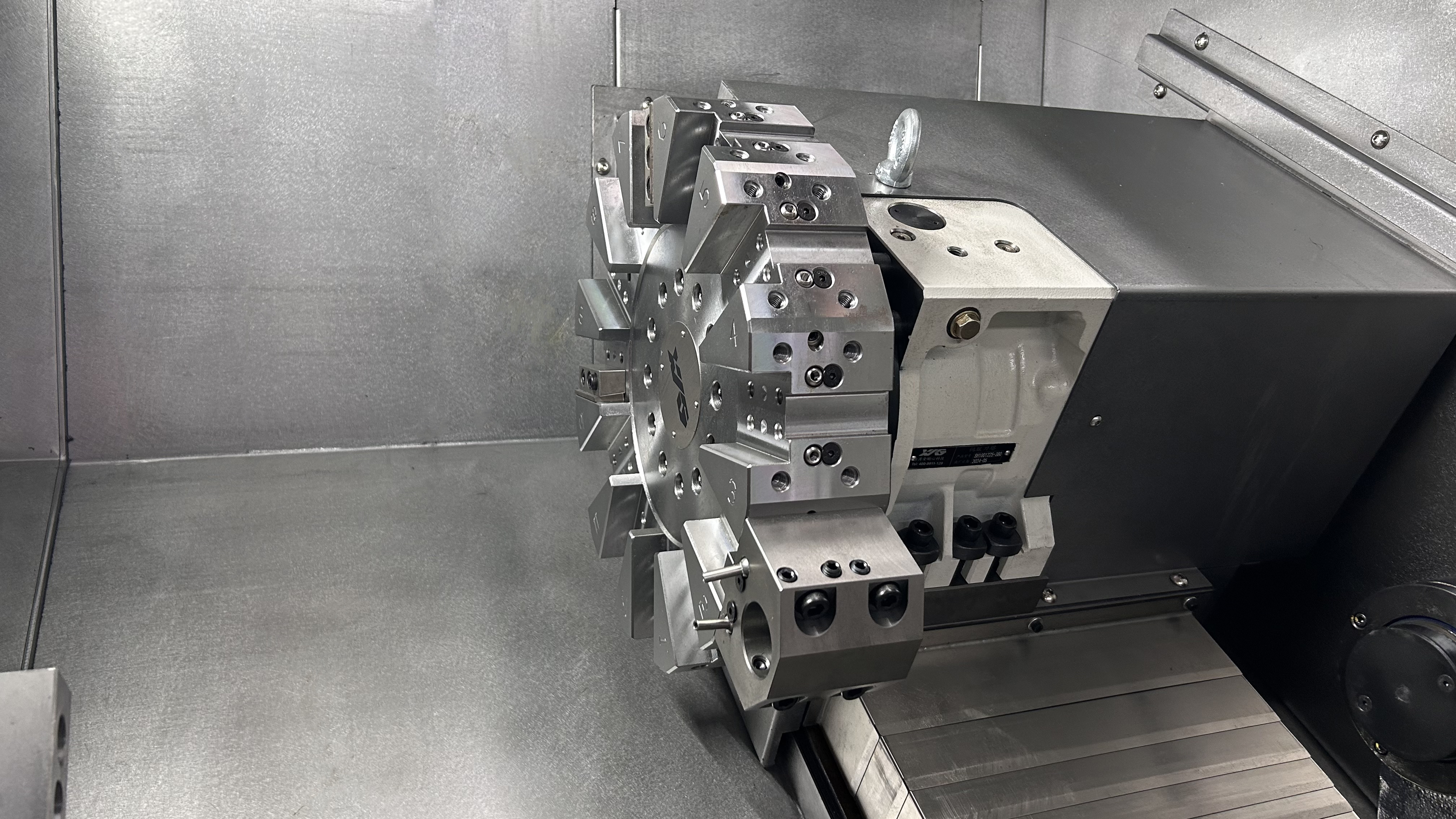

Equipped with a 12-station servo hydraulic tool turret with a tool disc diameter of 420 mm, capable of performing external circular, end face, and boring operations on workpieces.

2.TCK52D

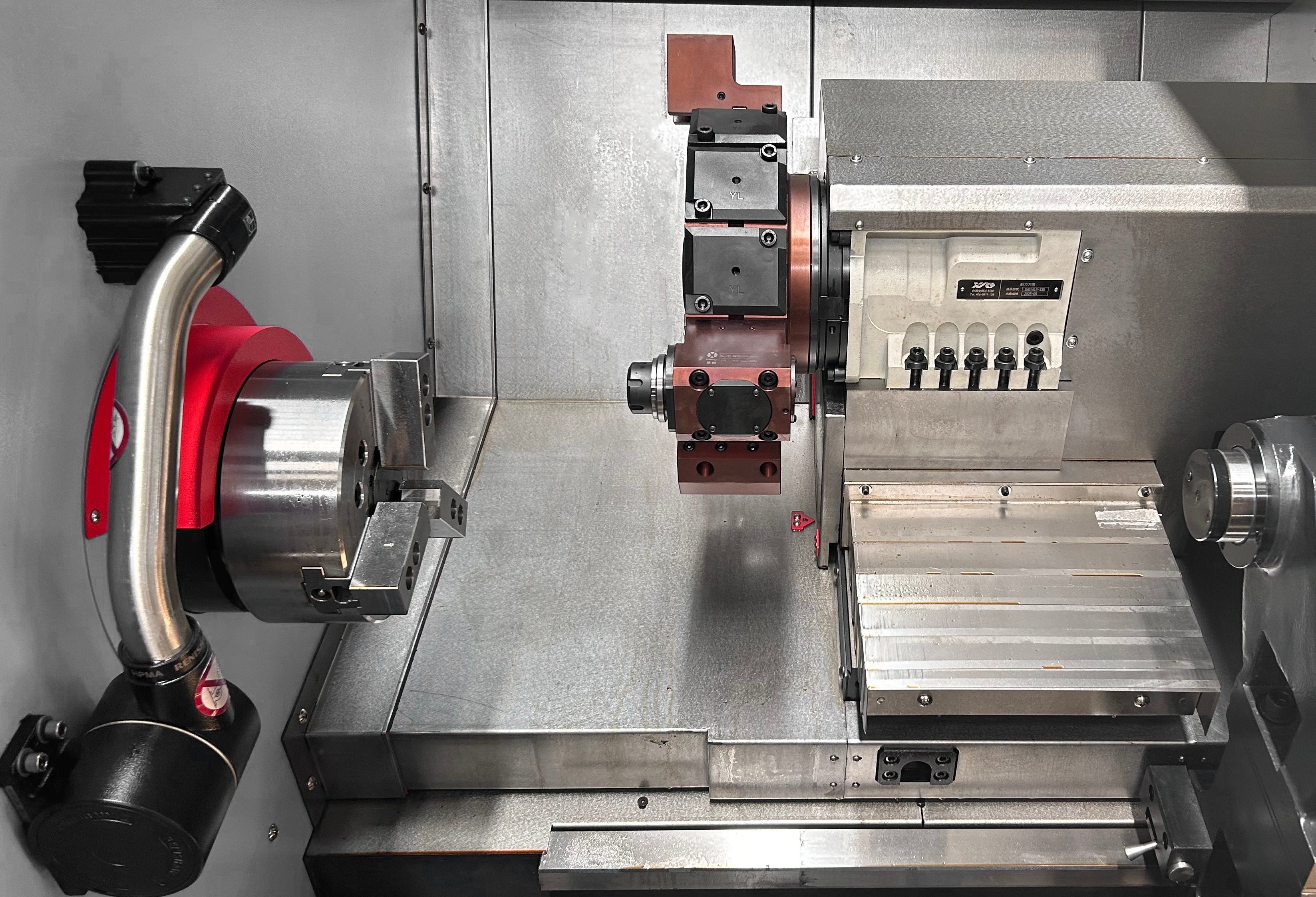

Equipped with a BMT55 milling power turret driven by a high-efficiency servo motor, it offers powerful machining performance. It can efficiently machine complex workpieces. For example: external circular milling, end face milling, boring, tapping, U-drilling, corner milling, straight milling, spiral milling, gear hobbing, etc.

3.TCK52DY

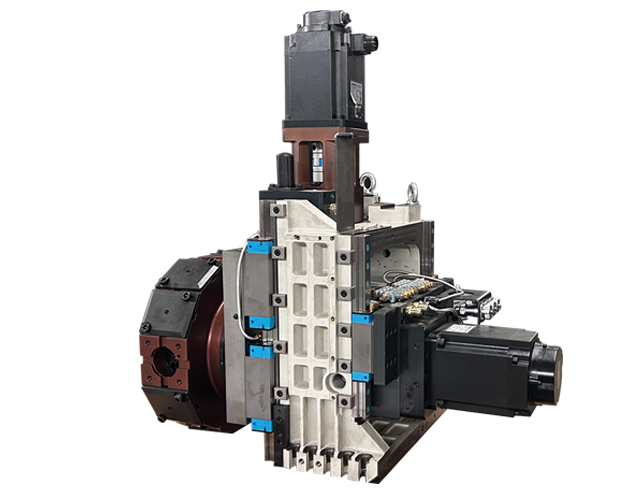

The BMT55 milling power turret, driven by a high-efficiency servo motor, enables efficient machining of complex workpieces. For example: external cylindrical surfaces, end faces, boring, tapping, U-drilling, corner milling, straight milling, spiral milling, gear hobbing, etc. Equipped with a 4-line guide Y-axis.

4.TCK52DYS

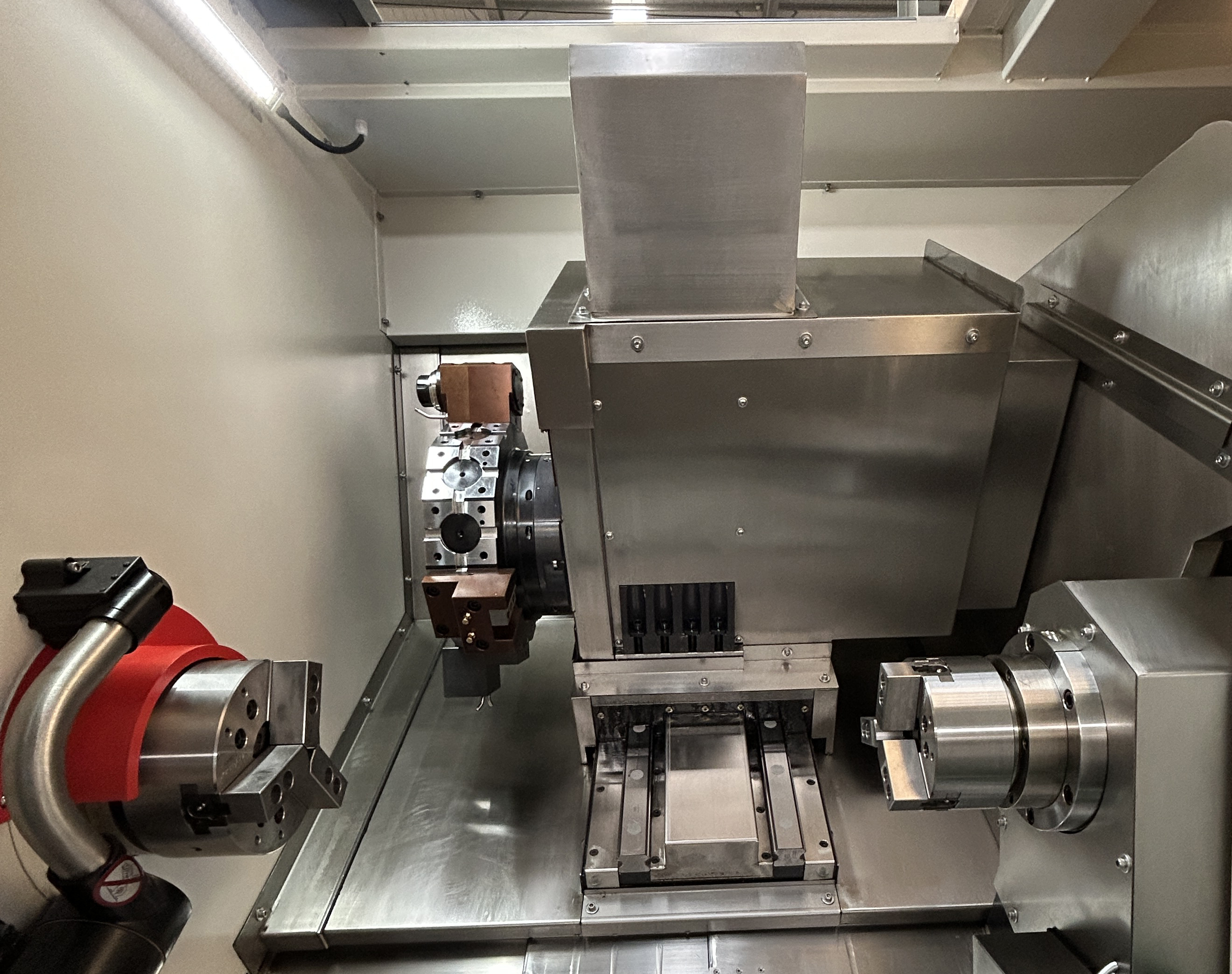

The BMT55 milling power tool turret, driven by a high-efficiency servo motor, enables efficient machining of complex workpieces. Examples include: external cylindrical machining, end face machining, boring, tapping, U-drilling, corner milling, straight milling, spiral milling, and gear hobbing. Equipped with a 4-line guide Y-axis, with a Y-axis travel range of ±50. Equipped with a sub-spindle (high-power direct-drive electric spindle), with the sub-spindle taper available in A2-5/A2-6.
