What is a dual-spindle slant bed CNC lathe? DONGS Machine Tools explains.

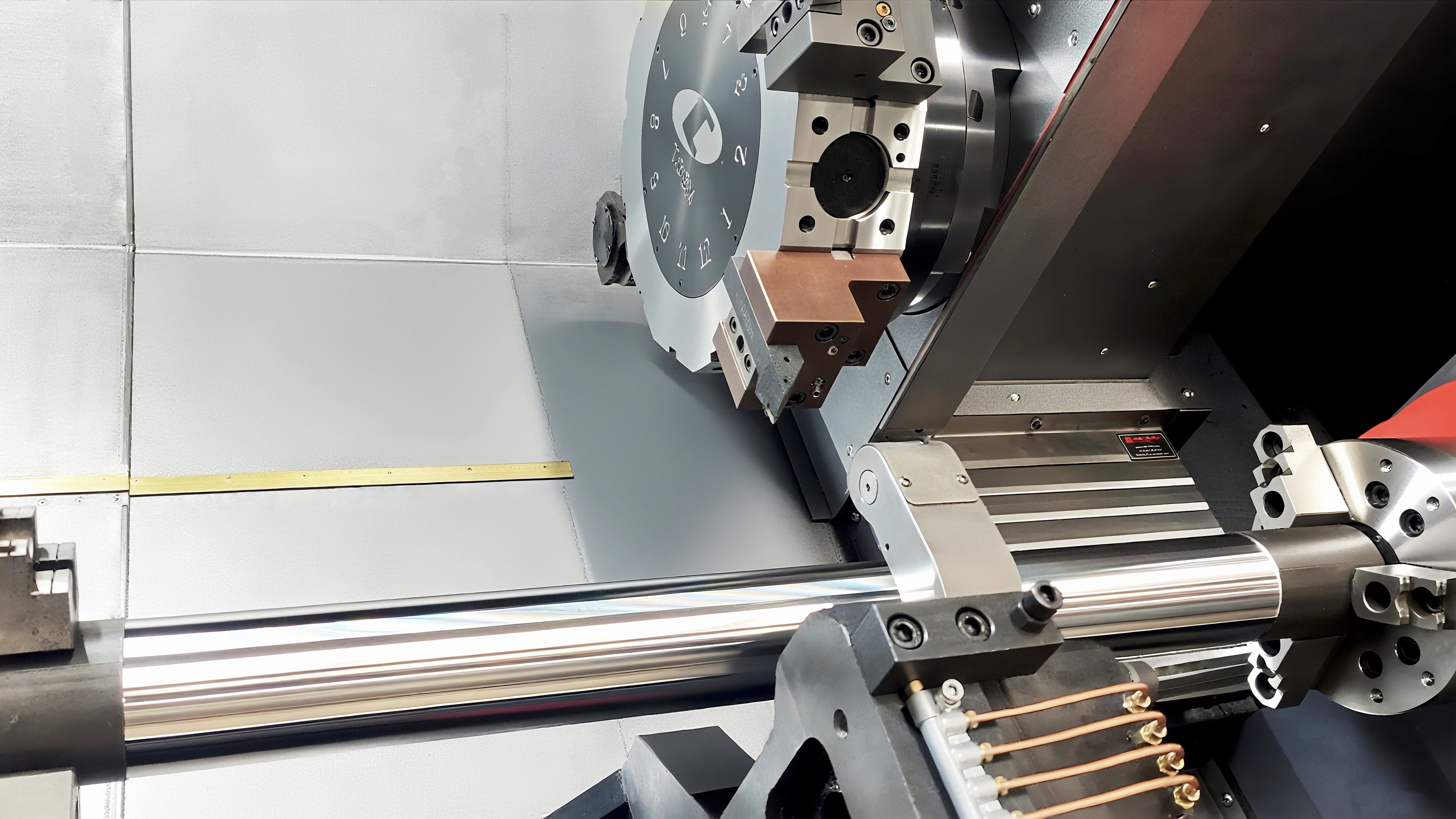

1.High-rigidity structural bed

The dual-spindle CNC lathe features an inclined bed structure, wherein the bed forms a right-angled triangle. The plane housing the CNC lathe guideways intersects the ground plane, presenting an inclined surface. This inclination angle may be selected from 30°, 45°, 60°, 75°, and other options. For a given guideway width, the X-axis saddle on an inclined bed is longer than that on a horizontal bed, enabling the installation of multi-station turrets. The inclined bed configuration offers superior rigidity, precision, cutting performance, and chip evacuation capabilities.

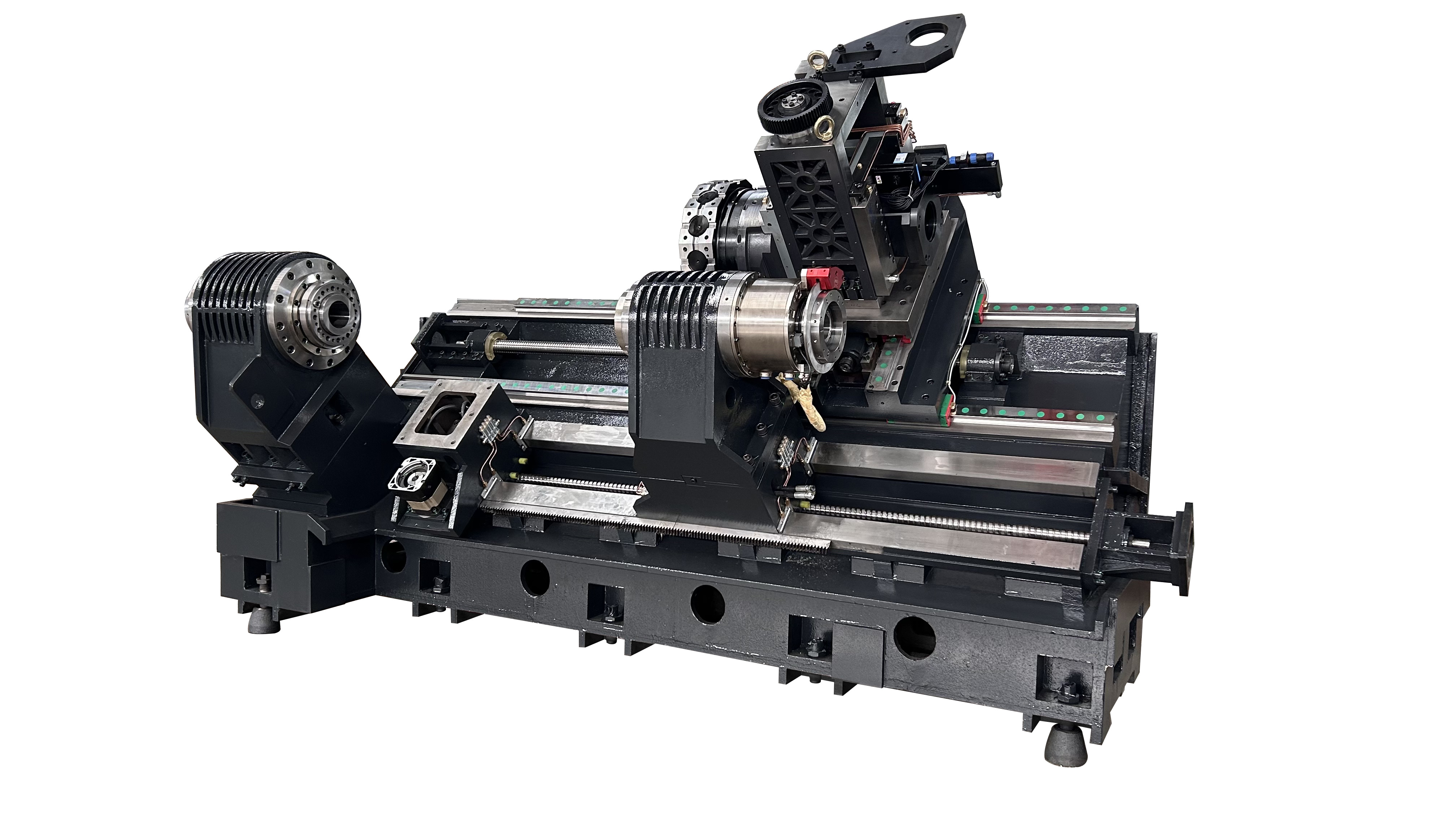

2.Main spindle and sub-spindle

As an advanced CNC machine tool, the dual-spindle CNC lathe features two spindles positioned on either side. Its characteristics of high efficiency, precision, and flexibility have led to widespread adoption within the manufacturing sector. Compared to traditional single-spindle lathes, the dual-spindle design incorporates an additional spindle, enabling workpieces to be transferred between both spindles. This reduces downtime, accommodates diverse machining requirements, and consequently achieves a more efficient manufacturing process. This feature not only enhances production efficiency but also demonstrates significant technical advantages in numerous aspects. The core of the dual-spindle CNC lathe lies in its dual-spindle design. The second spindle is typically movable, capable of relocating to the position of the first spindle to retrieve workpieces that have undergone preliminary machining for further processing. This facilitates improved workpiece precision and machining speed. Each spindle can be independently controlled and possesses identical functionality and performance.

Parameters such as maximum workpiece diameter and load capacity are determined by the lathe's specifications. Within the same footprint, this configuration achieves higher production capacity, effectively conserving manufacturing space.
